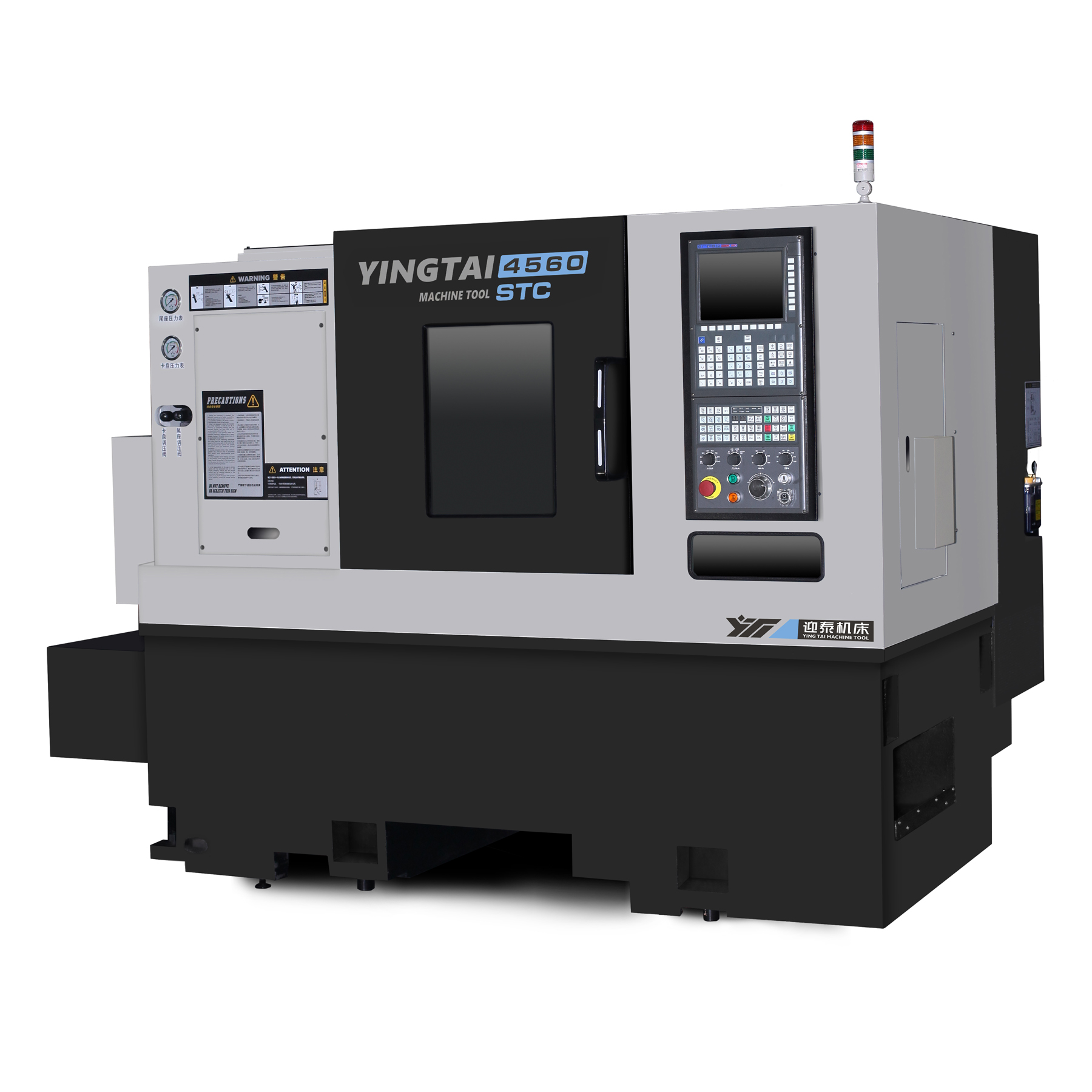

STC4560 High/Low Rail Slant Bed/Turret CNC Lathe
High-performance CNC lathe combining a rigid stepped base with a high-power, high-torque and high-speed spindle. The 8/12-station integrated servo turret provides fast, precise tool changing and excellent rigidity for efficient machining.
Tel: +86 15068603516
Email: jiang@yingtaimachinetool.com
Product Description

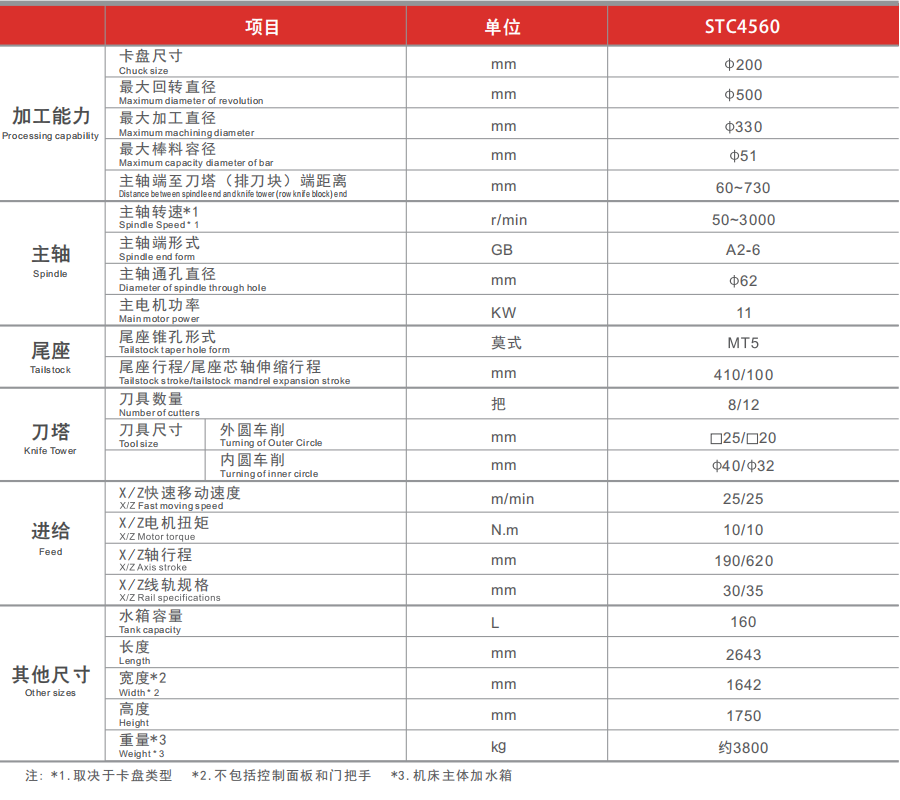

| Item | Unit | STC4560 | |
| Processing capability | Chuck size | mm | Φ200 |
| Maximum diameter of revolution | mm | Φ500 | |
| Maximum machining diameter | mm | Φ330 | |
| Maximum capacity diameter of bar | mm | Φ51 | |
| Distance between spindle end and knife tower (row knife block) end | mm | 60~730 | |
| Spindle | Spindle Speed *1 | r/min | 50~3000 |
| Spindle end form | GB | A2-6 | |
| Diameter of spindle through hole | mm | Φ62 | |
| Main motor power | KW | 11 | |
| Tailstock | Tailstock taper hole form | MT5 | |
| Tailstock stroke/tailstock mandrel expansion stroke | mm | 410/100 | |
| Knife Tower | Number of cutters | 8/12 | |
| Tool size – Turning of Outer Circle | mm | □25/□20 | |
| Tool size – Turning of inner circle | mm | Φ40/Φ32 | |
| Feed | X/Z Fast moving speed | m/min | 25/25 |
| X/Z Motor torque | N.m | 10/10 | |
| X/Z Axis stroke | mm | 190/620 | |
| X/Z Rail specifications | mm | 30/35 | |
| Other sizes | Tank capacity | L | 160 |
| Length | mm | 2643 | |
| Width *2 | mm | 1642 | |
| Height | mm | 1750 | |
| Weight *3 | kg | 3800 |
